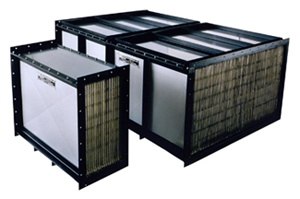

525 Теплообменники Exothermics SP
Exothermics SP Sinusoidal Plate Heat Exchangers are the flagship products of the Exothermics line. Our exclusive sinusoidal plate design provides maximum effectiveness and the highest performance available on the market today. High heat transfer effectiveness is produced by corrugating the heat transfer plates to achieve our proprietary sinusoidal wave pattern. The corrugated surface creates air flow turbulence as the air passes through the unit. Heat transfer is further enhanced by using a counter flow design. SP heat exchangers feature fully welded stainless steel construction for robust, durable performance, maximum efficiency and short payback time.
530 Рекуператоры перекрестного тока
Eclipse Cross-Flow Recuperators are compact tubular air-to-air heat exchangers designed to recover the waste heat in industrial exhaust gases. The recovered heat is used to preheat the combustion air for the system’s burners, thereby increasing the thermal efficiency. To ensure that all the wasted heat is drawn across the recuperator tubes the recuperator is typically mated with an Eclipse eductor. The single-ended design of the Cross-Flow Recuperator allows for free expansion of the recuperator tubes; no expansion joints are required.
535 Теплообменники пластинчатые из нержавеющей стали
Exothermics' DSP Dimple Plate Heat Exchangers are fully-welded and can be manufactured in a wide variety of sizes. They can also be configured for counter-flow or cross-flow operation. In these exchangers the parallel plates are formed with either staggered or inline dimple patterns to reduce the potential for particulate fouling. The Dimple Plate Heat Exchanger can recover energy from an industrial exhaust with temperatures up to 1,200° F (650° C). The dimple plate design can be used for applications where the flows may include some particulate.

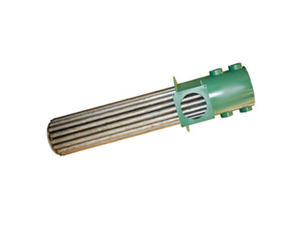

540 Рекуператоры Extern-a-Therm
Extern-A-Therm Recuperators are compact tubular air-to-air heat exchangers designed to recover the waste heat in industrial exhaust gases. The recovered heat is used to preheat the combustion air for the system’s burners, thereby increasing the thermal efficiency. To ensure that all the wasted heat is drawn across the recuperator tubes, the recuperator is typically mated with an Eclipse eductor. The design of the Extern-A-Therm, housing and eductor ensure ease of installation and efficient use of existing pipe work. The housings are internally insulated; there is no need for additional external insulation.
545 Теплообменники Exothermics TBR
Exothermics’ TBR Tubular Heat Exchangers effectively reclaim heat from catalytic incinerators, furnaces, thermal oxidizers and many other high temperature process and environmental applications. They help lower energy costs by easily and effectively controlling process air temperatures and deliver a fast return on investment.

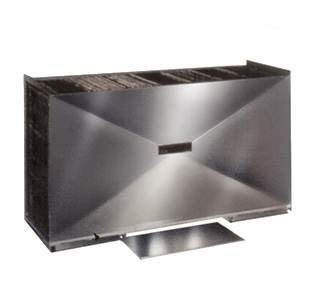

550 Алюминиевый теплообменник с синусоидальными пластинами
The Exothermics Aluminum Air-to-Air Heat Exchanger is a counter-flow design allowing for two segregated air streams to flow through the parallel plates within the exchanger. These exchangers utilize a state-of-the-art sinusoidal plate-type design for maximum heat transfer efficiency.
